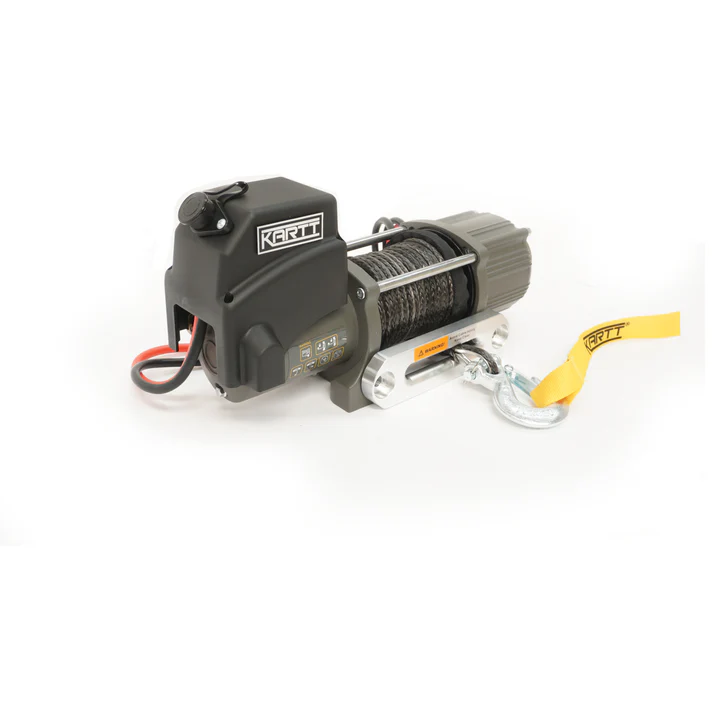

Kartt 4500lbs 12v Electric Winch with Synthetic Rope

The KARTT 11500lbs Electric Winch is a heavy-duty recovery solution designed for reliability in the most demanding environments. Powered by a high-performance 6.0hp (4.5kW) series wound motor, this 12V winch delivers a massive 51kN (11500lbs) of pulling power.

Engineered for durability, it features a 3-stage planetary gear system with a 230.4:1 ratio, ensuring smooth and efficient operation under load. This model comes equipped with a 25m synthetic rope, providing a lightweight, high-strength alternative to traditional steel cable that is safer and easier to handle.

Key Features & Benefits

• High-Power Performance: 6.0hp series wound motor provides consistent pulling force
• Advanced Braking: Automatic in-the-drum braking system for maximum safety and control
• Weather Resistant: IP67 rated to protect against water and dust ingress during off-road or recovery use
• Dual Control: Includes both a 3.7m wired remote and a wireless remote for flexible operation
• Synthetic Rope: Supplied with 25m of 10mm synthetic rope and a heavy-duty competition hook

Product Data (Technical Specifications)

• Max pulling force 2041 kg
• Supply voltage: 12 V
• Gearing: 3-stage planetary
• Gear ratio: 266:1
• Clutch lever: manual
• Brake: automatic 100% Load Holding
• Rope: wire 5.5mm x 15.2m
• Remote: wired & wireless
• Installed weight: 11.34 kg
• Gross/Shipping weight: 12.24 kg
• Certificate: CE
• ROPE SPEED | POWER CONSUMPTION IN A
• Line Pull 0 kg 7.35 m/min, 26A
• Line Pull 2041 kg 1.65 m/min, 238A

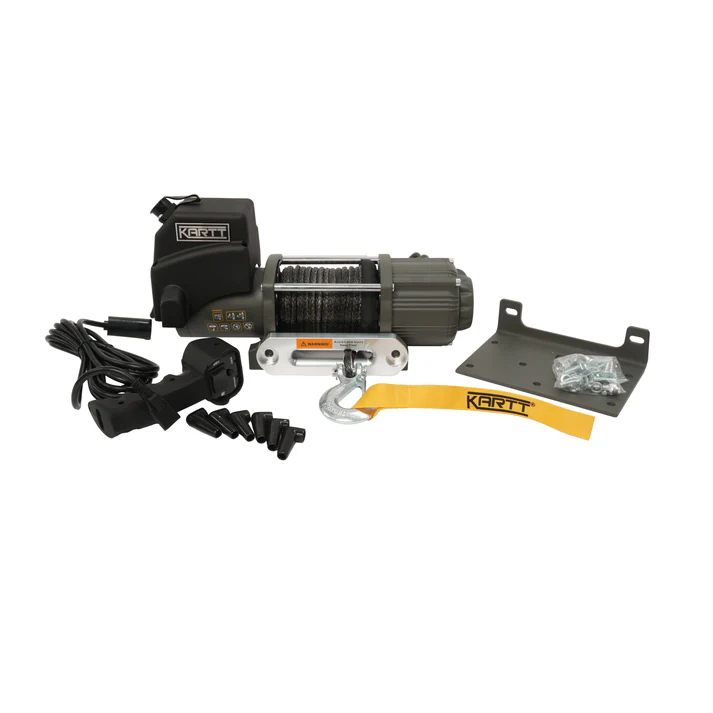

What’s in the Box?

• 1 x KARTT 11500lbs 12V Winch
• 1 x 25m Synthetic Rope & Competition Hook
• 1 x Aluminium Hawse Fairlead
• 1 x Wireless Remote Control
• 1 x 3.7m Wired Remote Lead
• 1 x Control Box with Battery Cables

Recommended Accessories

• Neoprene winch cover
• Mounting Plate P/N WKS010
